Taper thread Machine for taper thread rebar coupler

YDZTS-40C Rebar Taper Thread Cutting Machine is designed and manufactured by Hebei Yida Reinforcing Bar Connecting Technology Co., Ltd. It is mainly used as a special equipment to make taper thread on the end of the rebar in the processing of rebar connection. Its applicable diameter is from ￠ 16 to ￠ 40. It applies to Grade Ⅱ and Ⅲ level rebar. It has reasonable structure, light and flexible, simple operation, high production efficiency. It is widely used in steel bar end processing of taper thread joints in concrete works .It adapts to a variety of complex construction site environment. The main performance parameters: Processing of bar diameter range: ￠ 16mm ￠ 40mm Processing thread length: less than or equal to 90mm Processing steel Length: greater than or equal to 300mm Power: 380V 50Hz Main motor power: 4KW Reduction ratio reducer: 1:35 Rolling head speed: 41r/min Overall dimensions: 1000 × 480 × 1000 (mm) Total weight: 510kg

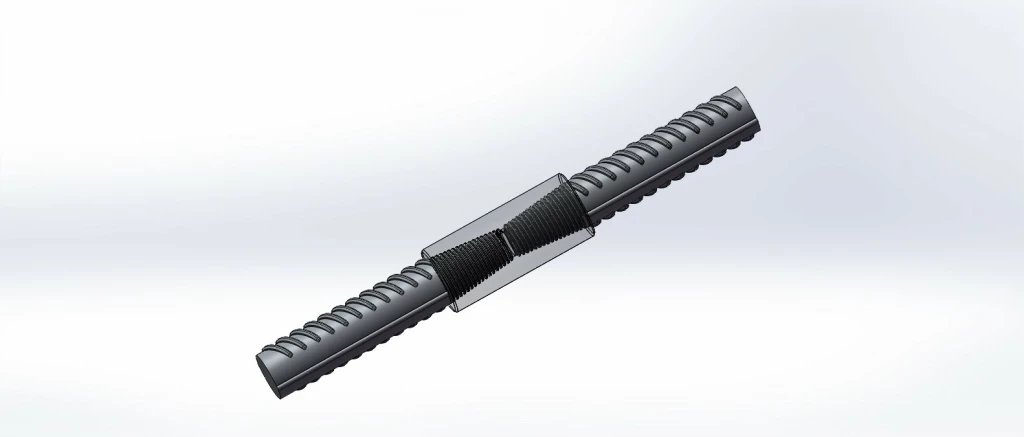

Standard taper thread couplers are designed to splice the same diameter bars where one bar can be rotated and the bar is not restricted in its axial direction.It is designed to achieve failure loads in excess of 115% of the caracterisitc strength of grade 500 rebar and.
