Steel Bar Rib Peeling and thread rolling machine mechanical splicing thread cutting machine
- Rating
-
- Category
- Cutting Tools & Machinery > Tools, Machinery and Equipment
- Price
- $2,000.00 (Taxation excluded)
- Minimum Order
- 1
- Maximum Order
- Unlimited
- Unit
- Set
- Countries sellable to
- Afghanistan, Aland Islands and 248 more
Share on

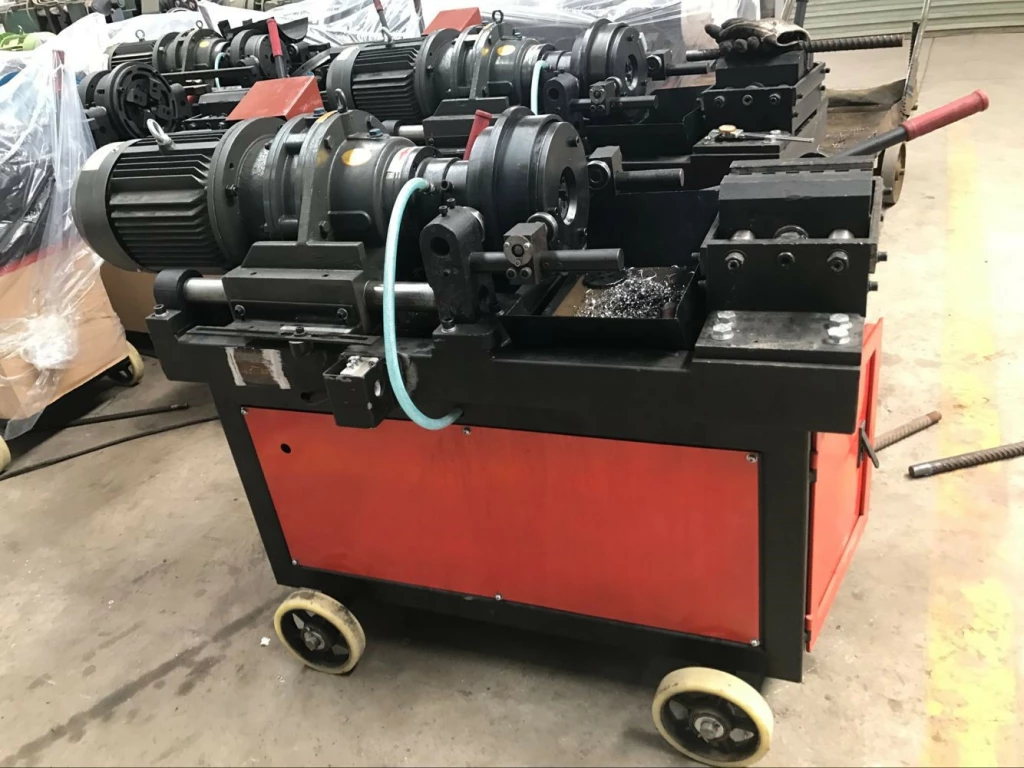

steel bar straight screw thread processing rib peeling machine is the exclusive use rib peeling knurling machine for the straight screw thread connecting. It is mainly used in the processing of the top of the structural steel bar.
Working Principle:
1)Slice up the end of the rebar;
2)Peel the rib of the end of rebar with specialty rib peeling parallel thread rolling machine;
3)Connect the two ends of rebar with rib peeling thread coupler;
The technical parameter for BGZL-40 steel bar rib peeling and threading machine
The Machine Model BGZL-40B2 Machine
Rolling Roller model E F G H
Thread Pitch (mm) 2.0 2.5 3.0 3.0
Steel Bar Standard 16 18、20、22、25 28、32 36、40
The Whole Machine Weight 535Kg
The Power of Main Electric Motor 5.5KW
The Power Of Water Pump Electric Motor 0．75KW
The Work Voltage 380V 50Hz 3Phase
The Output Rotate Speed of Reducer 62
Dimension(mm) 1000╳180╳1000mm
Working Principle:
1)Slice up the end of the rebar;
2)Peel the rib of the end of rebar with specialty rib peeling parallel thread rolling machine;
3)Connect the two ends of rebar with rib peeling thread coupler;
The technical parameter for BGZL-40 steel bar rib peeling and threading machine
The Machine Model BGZL-40B2 Machine
Rolling Roller model E F G H
Thread Pitch (mm) 2.0 2.5 3.0 3.0
Steel Bar Standard 16 18、20、22、25 28、32 36、40
The Whole Machine Weight 535Kg
The Power of Main Electric Motor 5.5KW
The Power Of Water Pump Electric Motor 0．75KW
The Work Voltage 380V 50Hz 3Phase
The Output Rotate Speed of Reducer 62
Dimension(mm) 1000╳180╳1000mm
