2513-FR Series UV Printing Machine
- Rating
-
- Business
- Pars (Leather & Fabric)
- Category
- Leather > Finishing / Cladding
- Price
- price not defined
- Minimum Order
- 1
- Maximum Order
- Unlimited
- Unit
- Countries sellable to
- Afghanistan, Aland Islands and 248 more
Share on
2513-FR Series UV Printing Machine
High speed up to 150 m2 per hour with new non-contact technology Magnetic Linear Motor

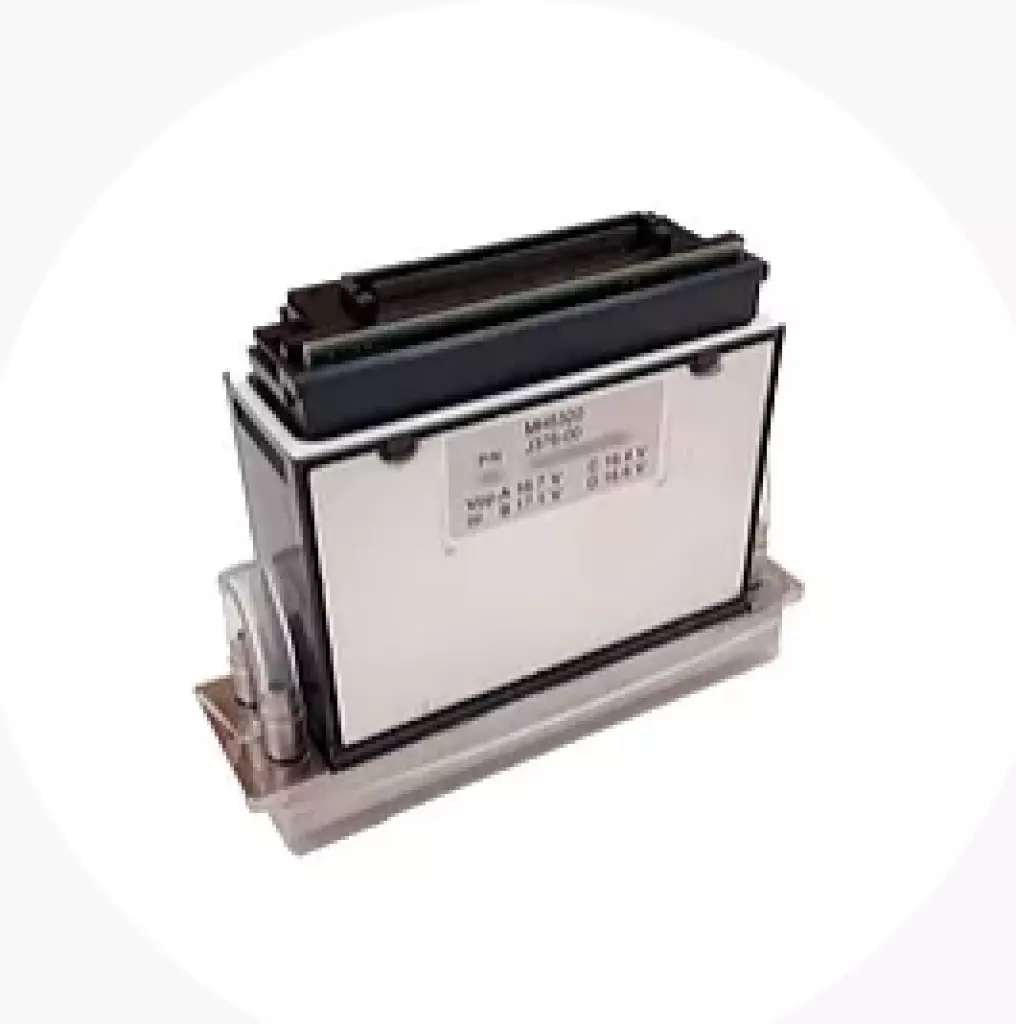

Seamless prints with the new RICOH GEN6 printheads
FR series UV Printing Machines are made of high quality parts.
Our FR6 Series UV Printing Machine is the class leader in terms of quality and sales.
Our FR Series UV Printing Machines use RICOH's GEN6 print heads with 50khz firing frequency with 5pl droplet size and GEN5 printheads with 7pl droplet size 30khz firing frequency.
Zero vibration, more precise printing and high speed with the new generation Magnetic Linear Servo Motor
High ink savings, vivid and accurate colors with ONYX Rip
PANASONIC

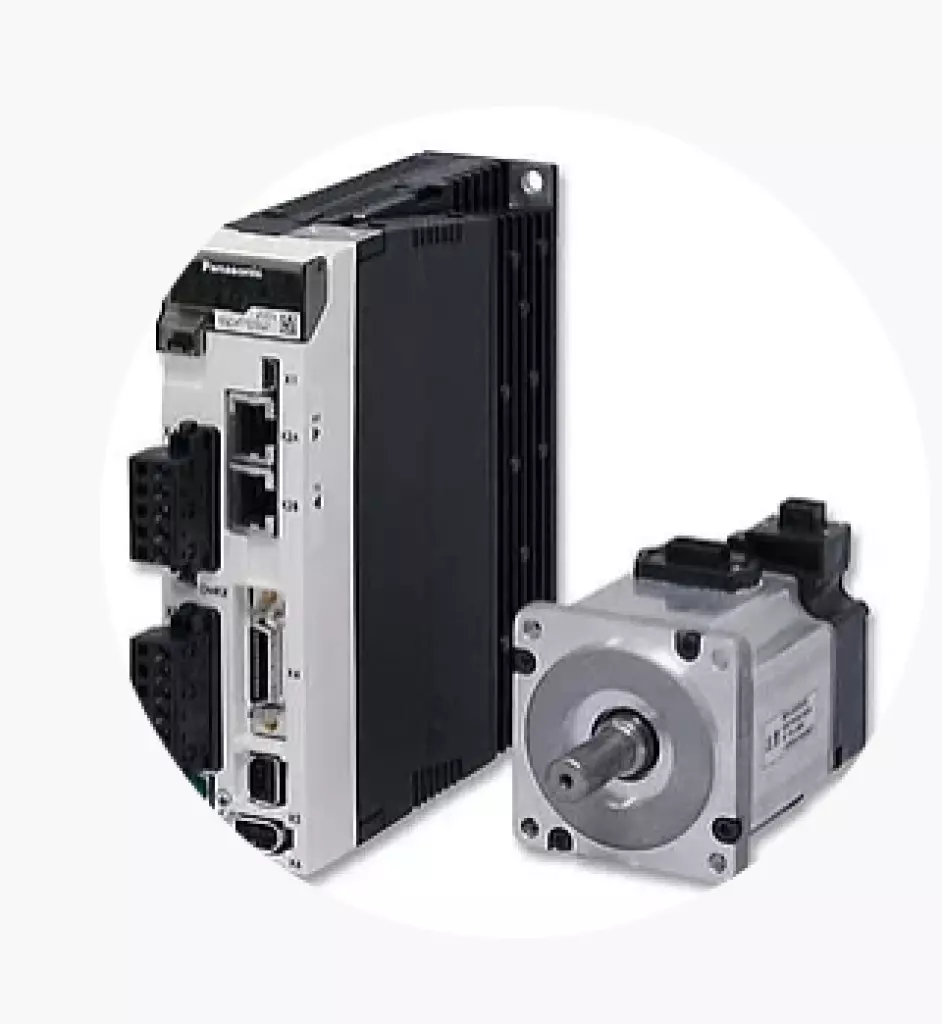

Precise positioning with dual Panasonic Servo Motors in Y axis, high speed, long life...

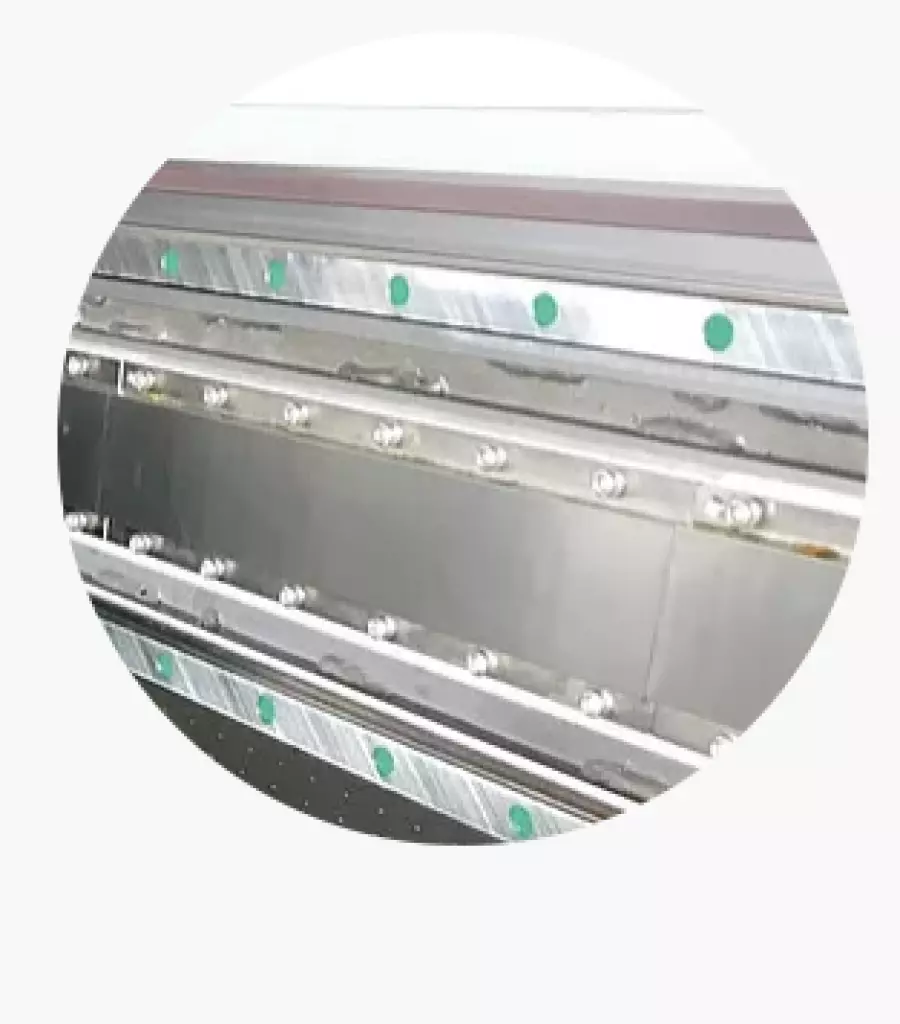

THK linear carriages and rails with low friction, long service life and ultra-quiet structure
Metal Encoder Strip and Magnetic Encoder Sensor, which provides precise positioning ability even at high speeds that are not affected by dust, oil, dirt
Continuous Stable Ink Flow with high precision negative pressure system that can control White and Color inks separately, purge cleaning system that cleans each color separately, and triple ink heating system...
Static eliminator and static air gun,
digital ink level indicator,
Vacuum table (zone controlled),
Head impact protection sensors,
PARS offers you uninterrupted and full service by stocking your most needed Pet printing material, Ink and Powder in its own warehouses.
Your product is under the assurance of PARS with expert technical service workers, abundant spare parts and consumable support.
TECHNICIAL SPECIFICATIONS
Machine Model:
2513-FR6
2513-FR5
Printhead:
RICOH GEN6
RICOH GEN5
Print Speed:
25 - 120 m2
15 - 80 m2
Print Size:
250 x 130 cm
Print Height:
10 cm (optional 20 cm)
Print Head Quantity:
8 Pieces (max) Optional 16 Pieces (max)
Printing Colors:
CMYKLcLmWV
Print Resolution:
2400dpi:
Uv Led Ink
Ink:
Purge Cleaning System
Cleaning System
Rip Software:
ONYX 19
File Formats:
Jpeg Tiff Eps Pdf Psd Png
OS:
Windows 7 64bit and above
Electrical Values:
220V - 50/60 Hz - 8KW
Machine Weight:
1250 kg
