1612-FR Series UV Printing Machine (Ceramic - MDF - Fabric)

Rating
Business
Pars Teknik
Category
Signage & Advertising > Miscellaneous
Price
price not defined
Minimum Order
1
Maximum Order
Unlimited
Unit
Countries sellable to
Afghanistan, Aland Islands and 248 more

High speed up to 150 m2 per hour with the new non-contact technology Magnetic Linear Motor.

Seamless prints with the new RICOH GEN6 printheads.

FR series UV Printing Machines are made of high quality parts.

Our FR6 Series UV Printing Machine is the class leader in terms of quality and sales.

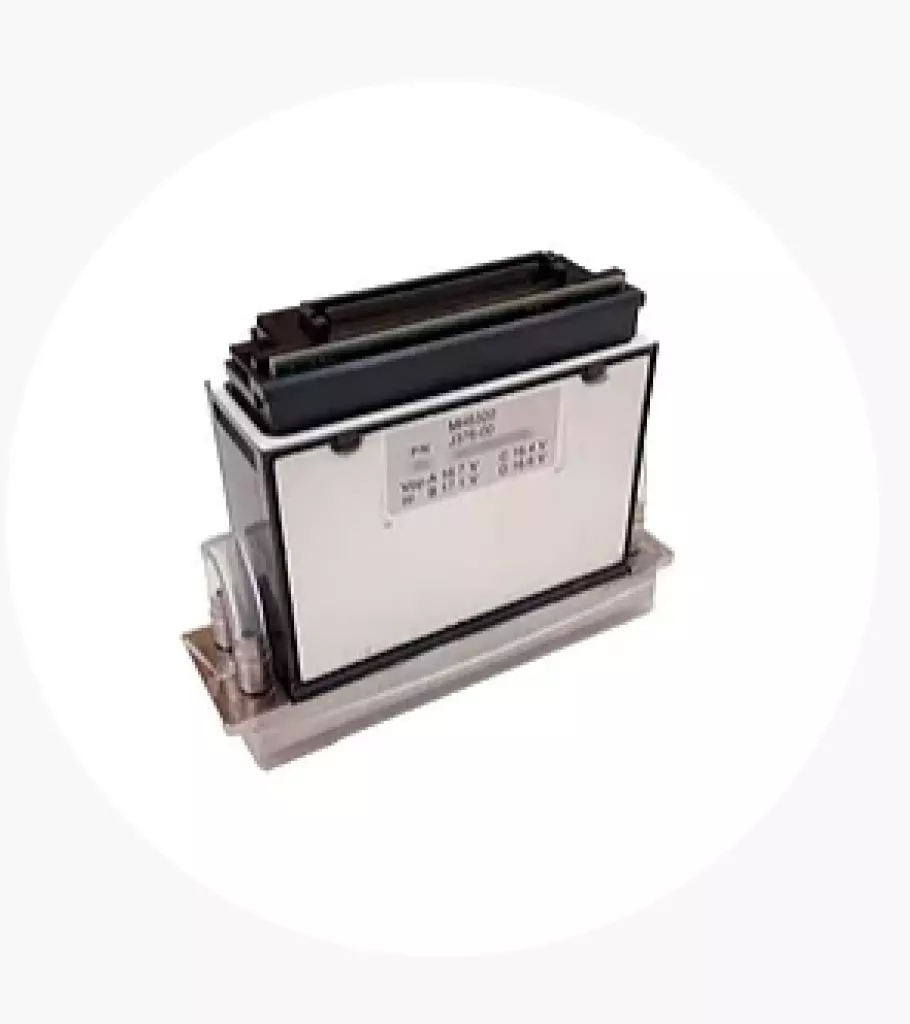

AR RICOH PRINTHEADS

Our FR Series UV Printing Machines use RICOH's GEN6 print heads with 50khz firing frequency with 5pl droplet size and GEN5 printheads with 7pl droplet size 30khz firing frequency.

MAGNETIC LINEAR MOTOR

Zero vibration, more precise printing and high speed with the new generation Magnetic Linear Servo Motor.

ONYX RIP

High ink savings, vivid and accurate colors with ONYX Rip.

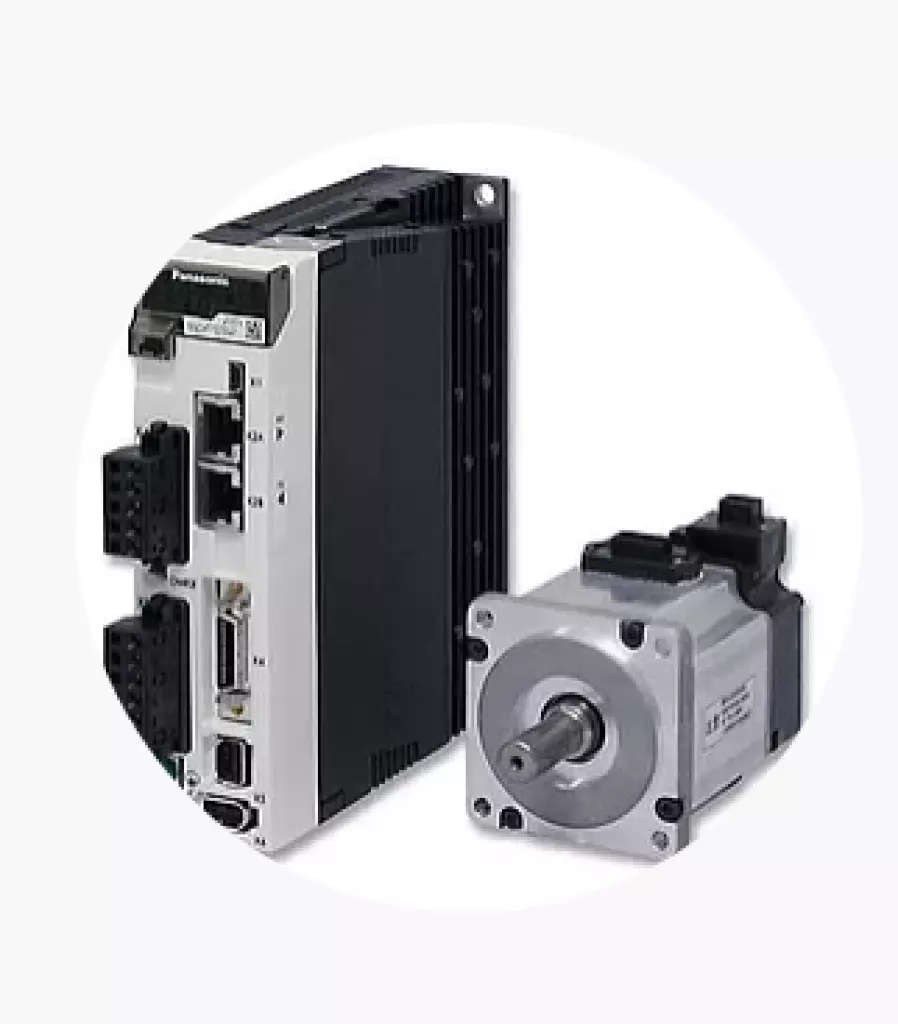

PANASONIC SERVO MOTOR

Precise positioning with dual Panasonic Servo Motors in Y axis, high speed, long life...

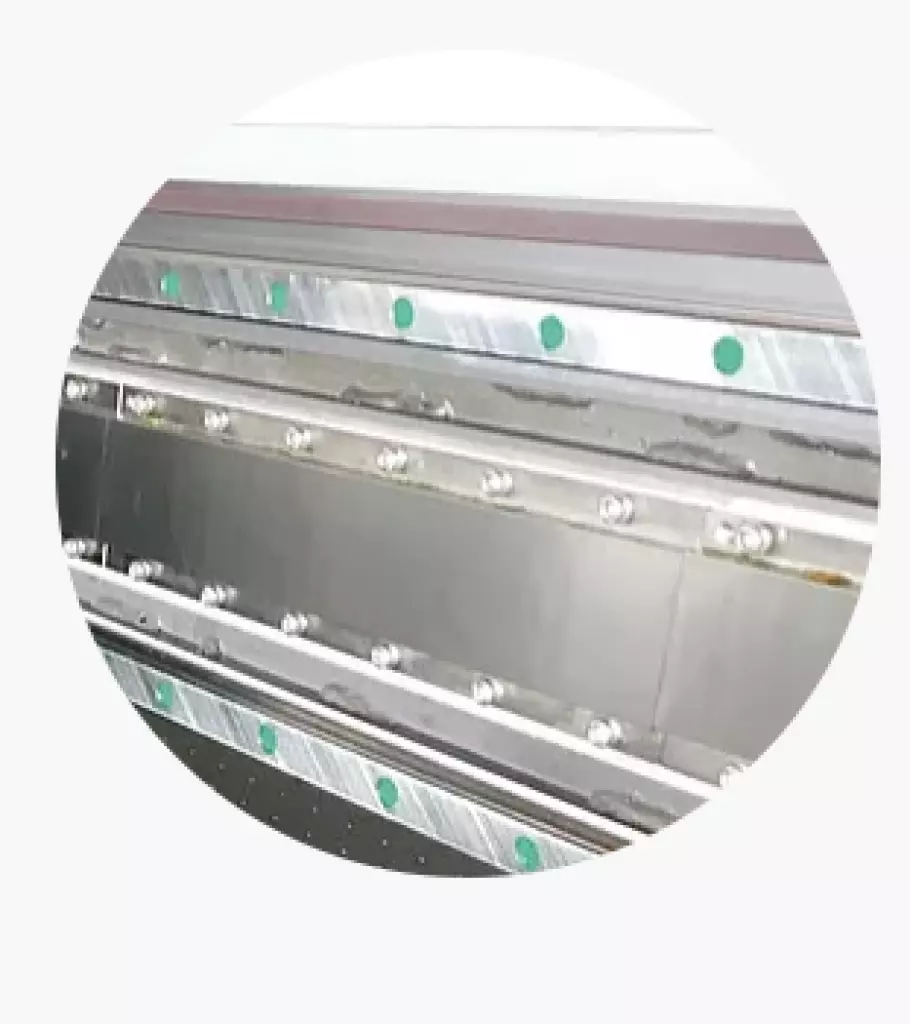

THK LINEAR SYSTEM

THK linear carriages and rails with low friction, long service life and ultra-quiet structure.

METAL ENCODER

Metal Encoder Strip and Magnetic Encoder Sensor, which provides precise positioning ability even at high speeds that are not affected by dust, oil, dirt.

STABLE INK FLOW

Continuous Stable Ink Flow with high precision negative pressure system that can control White and Color inks separately, purge cleaning system that cleans each color separately, and triple ink heating system...

AND MORE...

Automatic material height measurement

material alignment pins,

Static eliminator and static air gun,

digital ink level indicator,

Vacuum table (zone controlled),

Head impact protection sensors,

... and more.

STRONG STOCK

PARS offers you uninterrupted and full service by stocking your most needed Pet printing materials, Ink and Powder in its own warehouses.

SATISFACTION GUARANTEE WITH PARS

Your product is under the assurance of PARS with expert technical service workers, abundant spare parts and consumable support.

Machine Model: 1612-FR6 1612-FR5 Printhead: RICOH GEN6 RICOH GEN5 Print Speed: 25 - 100 m2 15 - 70 m2 Print Size: 160 x 120 cm Print Height: 10 cm (optional 20 cm)
